Small speed gate face recognition office gate brushless motor glass turnstile for lobby
Swing Speed Turnstiles offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building.

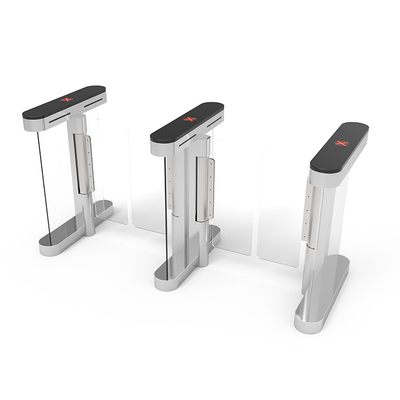

The TDZ-B238S is an attractive swing turnstile that is small and beautiful . The compact unit makes it simple to construct a multiple lane set-up
while the variety in colors allows you to match this turnstile perfectly to your lobby or branding, it drive by servo motor default ,accurate position and no noise
will provide you a better use feeling.
Feature
1. By using 6 pairs of military level high-performance infrared sensors and exact algorithms. It can accurately
detect the user's passing position to achieve the purpose such as anti-tailing. Anti-reverse passing and
anti-clamping etc.
2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit
3. The widen lane is optional for carrying luggage and wheelchair access.
4. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.
5. It will alarm when break in illegally,followed by people,passed overtime,damaged for equipment.
6. After swiping card in normal condition, if within the permitting time passages do not pass, the system
will cancel the users’ pass right and arm close automatically
7. Arm automatically open when the power off to make sure safety In case of emergency
8. Optional for external counter to record the people numbers for each lane
Parameters
Structure parameters |
|
Housing material |
304 grade stainless steel |
Thickness |
1.5/2.0mm |
Surface treatment |
Brushed finish |
Arm material |
Acrylic |
Technical parameters |
|
Size |
800---1400*160*1000mm |
Lane width |
550--850mm |
Passing speed |
35--50 people/min |
Open/close speed |
0.1--0.6sec |
Weight |
95KG |
Turning angle |
90 degree |
infrared sensors |
6 pairs |
MCBF |
10.000.000 times |
Application |
Indoor or outdoor |
Rotating directional |
Single way or Bi-directional adjustable |
Noise |
<55db |
Operating temperature |
-25 to 70℃ |
Relative humidity |
5% to 95% |
Package |
Carton box inside. Wooden case outside |
Electronic parameters |
|
Power supply |
220V, 50HZ |
Input signal |
Dry contact |
Driving motor |
Servo Motor with planetary reducer |
Method of position |
Encoder to make sure accurate position |
Demesion:
Company Introduce
Shenzhen Tongdazhi Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production,
sales and service. Since its establishment in 2009, the company has been dedicated to becoming a
one-stop service provider for solutions for access control equipment, smart access control systems,
ticket management systems, human-card identification systems, parking systems, and anti-terrorism
roadblock equipment. We develop, design and produce advanced and mature access control systems.
We provide customized hardware and software products and reliable and stable system for customers.
We have independent import and export rights, and our products have been sold in more than
80 countries and regions. We are willing to cooperate with you and share win-win situation to create
a bright future for internet security business.
