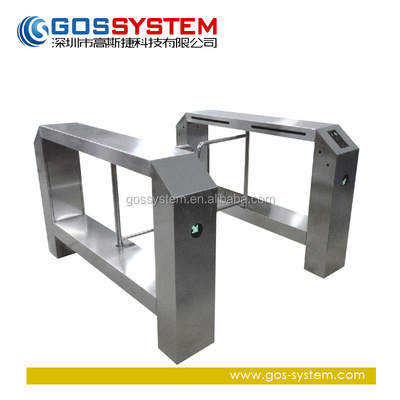

Name: Indoor Fully Automatic Swing Barrier Turnstile For Channel Control / Bike Swing Gate
Brand: Indoor Fully Automatic Swing Barrier Turnstile For Channel Control / Bike Swing Gate
SKU: GS22109, GS22109
Price: 2 USD
Availability: InStock
Rating: 4.8 (131 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Model Number: GS22109, GS22109

Product name: full automatic swing barrier turnstile for channel control

Material: 304 stainless steel

Product process: Brush surface (standard) / polishing surface

Color: Stainless steel color

Communication: Standard RS485 interface, the distance â‰¤1200 meters

Arm's rotation angle: 180â„ƒ

Application: Indoor, outdoor(with a tent over)

Relative humidity: â‰¤90%, no condensation

Gate open, off time: 2~3s

Basis informatie

Model Number: GS22109, GS22109

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Standard export wooden packing

Supply Ability: 1000 Piece/Pieces per Month

Productomschrijving

Product Description

full automatic swing barrier turnstile for channel control

For motor control models one or both directions of passage (Uni or bidirectional), commanded by any card reader, readers adaptation depending on the model in the same structure with placement of pictograms, etc.

Photo cell system for control, security and alarm. Best suited for indoor or outdoor surveillance with minimal protected from inclement weather. Models with manual and mechanical lock, magnetic or electric.

Availability of special aisle width for the passage of persons with reduced mobility or in wheelchairs.

Specification

Housing Material	304 stainless steel
Finish	Brush surface(standard)/polishing surface
Thickness	1.5mm
Dimensions	L1800W280H1000（MM）
Weight	70KG/pc
Swing direction	Single direction or bi-direction
Driving Angle	180 degree
Card reader window	2 ( entrance and exit each one)
LED indicator light	1
Working voltage	AC220±10%V/50±10% HZ
Driving electromotor	DC electromotor 100W/24V
Channel net width	1100mm
Working environment	Indoor, outdoor with a tent over
Working temperature	-10℃~50℃
Relative humidity	<=90%
Opening/closing time	2~3s
Transit speed	40 persons/min(normally open); 25~30 persons/min(normally closed)
Automatic reset time after fault	10s
Communication interface	RS485, standard distance≤1200 meters
Input interface	Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms, driving current > 10mA

Full Automatic Type

1. Compatibility: Being compatible with several control devices IC, ID, Magcard, barcode, fingerprint etc.
2. Auto-drop-arm function: the middle arm will drop automatically (default) or free passing (optional) when power is off.
3. Auto-lift-arm function: the middle arm can also lift automatically with alert when the power is on.
4. Automatic-rotation function: when an open signal is given, the arms will rotate automatically.
5. Anti-reverse-rotation function reverse rotation will be forbidden once the arms have moved to pre-set degree from home.
6. Emergency-escape function the middle arm will automatically drop by pressing the emergency button which can be remote controlled whether the power is on or not.

Semi Automatic Type

1 Being compatible with several control devices IC, ID, Magcard, barcode, fingerprint etc.
2. Automatically reset function: It will automatically lock if the pedestrian hasn't passed through the channel in the pre-set tune after the opening The passing tune is adjustable.
3. Auto-drop-arm function the middle arm will drop automatically (default) or free passing (optional) when power is off.
4 Emergency-escape function the middle arm will automatically drop by pressing the emergency button which can be remote controlled whether the power is on or not
5. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or. One passage works while another is set to forbid passing. or. one passage normally operates while another is free to pass

Manual Type

1 .The arms can only rotate by single direction, but the direction can be changed easily inside.
2. The structure has no electric devices.
3. No maintenance. Suitable for single-direction crowd control.

Detailed Images

product features

1.Single/double walkway--controlled in one direction or both
2.A valid lock action can allow one passage at one time.
3.Normally open--the machine will unlock when a valid signal is received.
4.It will lock automatically if passage through turnstile is not completed withinpre-set time, the set time can be adjusted via parameter change.
5. Lightning protection and leakage protection .
6. Protection functions: anti-pinch, anticollision, antistall,over voltage and over current and powersurge .
7.Control panel with count and LED digital function
8.The system is equipped with stepless position deviceand the operation process is controlled by sensors without mechanical impact .
9.Digital-controlled (CNC) processing technology,fine surface treatment and corrosion resistance .
10.Standard external electric interface with photoelectric isolation enchance incorporateall kinds of control equipments thus extremely convenient for system integration .
11.Remote control and setup .
12.Extended functions: counting, audible and visual alarm,fire alarm and linkage, Photoelectric Beam Detector';

◇ Standard chassis :2
◇ Wings :2
◇ Control panel :2 sets
◇ Direction indicator board: 2
◇ Transformer :2
◇ Motor :2
◇ Movement and transmission part :2 sets

Our Project

Packing & Delivery

PACKAGE
Ply-wooden box customized size for each items.

DELIVERY TIME
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
